DIAMONDTRAX Tiles PRO

The modern alternative to floor resin or floor paint, full tile.

Polypropylene floor tiles

Diamondtrax tiles is a tile with a streaked aluminum structure. This product can be compared to a concret tile but without the inconvenience of installation and maintenance. Its 18mm thickness makes it an extremely solid floor tile. A real “plastic” polypropylene floor tile for garage, easy and confortable installation, DIY.

diamondtrax modular floor tiles in every colors available

Diamondtrax tiles with industrial performance

The Diamondtrax tiles is resistant to most chemical product and various automotive liquids. This tile resists even skydroll (aviation oil) and some acids and solvents. The surface of this tile is smooth and shiny to facilitate cleaning, it is not a floor tile with a grainy appearance. This floor tile can be compared to tiling but without the inconvenience of installation and maintenance. 18mm thickness for a superior restitance !

swisstrax diamondtrax pro thickness of the tile

Protect your floor with polypropylene floor tile

Install your floor tiles quickly and easily thanks to the fixation system by simple clipping. No specific tool for installation. No floor preparation unlike resins or floor paints. Put your floor tiles directly on your bare ground and forget the patching or other …Diamondtrax® is a solid industrial tile that features a classic diamond plate appearance. Easy to clean and built to last. It’s never been easier to transform your floor with a premium, commercial-grade modular flooring solution.

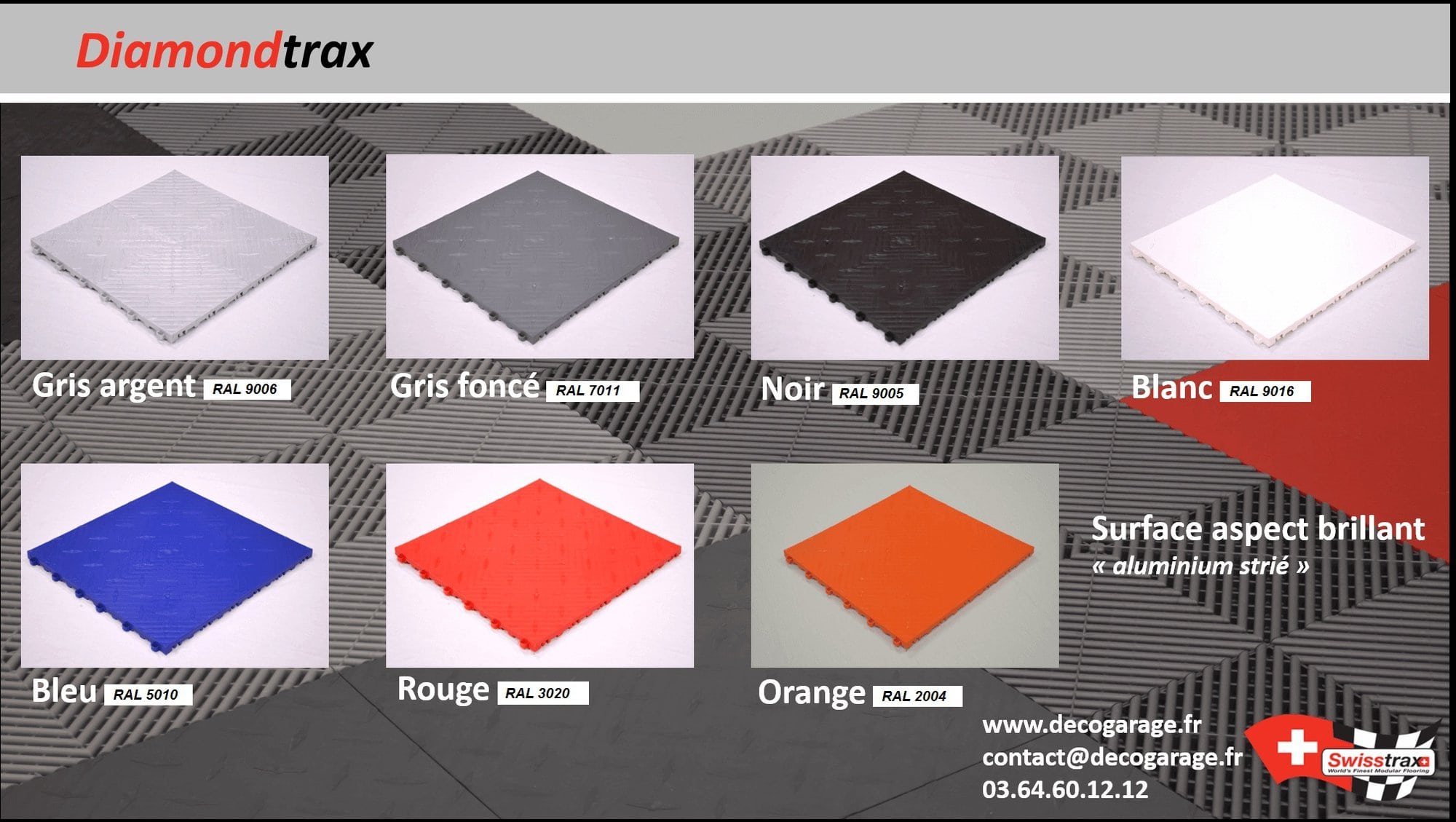

Diamondtrax tiles : 7 colors

All SWISSTRAX tiles have the same dimensions, you can mixed different tiles type during your installation. Mix tile colors with the 20 colors available, even incorporate your favorite logo. The Swisstrax polypropylene floor tile is very versatile.

Stronger polypropylene floor tiles

Diamondtrax tiles are extremely resistant and transform your floor. Its rigid base, diamond pattern and engraved surface protect while improving friction. Cleaning is easy thanks to the smooth and glossy surface of the tile. No trace of hot tire on your tiles, even after long parking period. Cleaning is compared to the maintenance of a simple tiling but without the disadvantages of installation… Check our blog about a comparaison with ceramic.

Diamondtrax tiles pictures :

Quick floor installation

The Swisstrax clip-on system ensures an easy and quick installation, you clip-on your tiles and that’s all.

Floor accessories

We offer a border and angle system that allows safe access to your floor (passage from garage door, stand contour, corner…)

Technical data

  • Dimensions par dalle : 40x40cmx1.8cm, dalle au poids unitaire de 800Grs
  • Matière : Polypropylène PP 100% recyclable,
  • 7 couleurs disponibles,
  • Couleurs spécifiques sur demande,
  • Excellente résistance aux hydrocarbures et différents produits chimiques,
  • Utilisation -30°c +120°c,
  • Traitement anti-UV,
  • Résistance : 25T/m2.

Colors
